ACP-DMZ-M6400

ACP-DMZ-M6400

.

Description

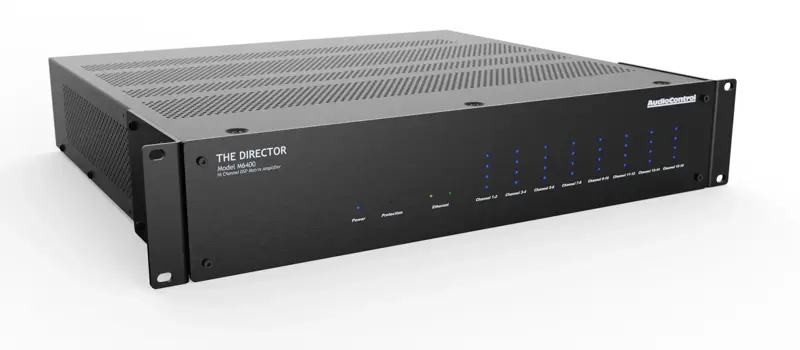

16-Channel DSP Matrix Amplifier

AudioControl Director® M Series amplifiers are among the highest-powered, most flexible multi-zone amplifiers worldwide, designed exclusively for commercial and residential custom integrators. In the most demanding applications for all system amplification and IP programmable signal processing tasks, the Director® M Series Model M6400 has the power and flexibility to operate as a standalone DSP amplifier or partnered with 3rd party over-control systems from companies such as Control4, Crestron, RTI and Savant. Configure graphic and parametric equalization, crossover points, volume settings, zone grouping, network monitoring, and more using the onboard DSP.

16, 65-watt channels into 8 Ohms become 100 watts per channel with 4-Ohm loudspeaker loads. When two channels bridge outputs, that single channel produces 175 watts into 8 Ohms, more than enough power for even the most demanding loudspeaker configurations. Two Coaxial digital input busses with Coaxial digital outputs may be matrixed, along with every analog zone input to any zone or all zone outputs. Built-in speaker profiles from AudioControl's Sound Partners™ program members offer M Series DSP-optimized tonally balanced speaker calibrations from a growing list of prominent loudspeaker manufacturers.

Discover for yourself the countless critical ways in which AudioControl Director® M Series amplifiers, designed, engineered, and manufactured in Seattle, USA, contribute to successful commercial or residential systems.
